Roca Duplo L .82m WC Frame With Dual Flush Cistern

Roca Frames In-Wall DUPLO WC L Frame With Dual Flush Cistern 500x820.



Compatiable with all Roca PL Flush Plates- See the range online.



Product Spec

  • The ideal solution for bathroom spaces with height restrictions (under window, low height - 820mm).
  • Compatible with wall hung toilet pans WCs (sold separately).
  • Suitable for solid wall and stud installations.
  • Suitable for public spaces and home installations (commercial and domestic).
  • In wall design with dual flush cistern.
  • Waste adapter for floor exit included (90 - 110mm).
  • Horizontal waste adaptor can be used (sold separately).
  • Fixing kit included.
  • Stainless steel frame.
  • Operating panel can be installed in the front or the top of the cistern (flush plate).
  • Large range of operating panels available / flush plates (sold separately).
  • Easy installation and future maintenance.
  • Flush valve longevity: 200,000 cycles.
  • Insulated cistern for low noise levels when refilling and reduces condensation.
  • Toilet pan fixing points: 180mm or 230mm.
  • Minimum installation depth: 167mm.
  • Suitable working pressure: 0.1 to 10 bar (ideal for low or high pressure areas).

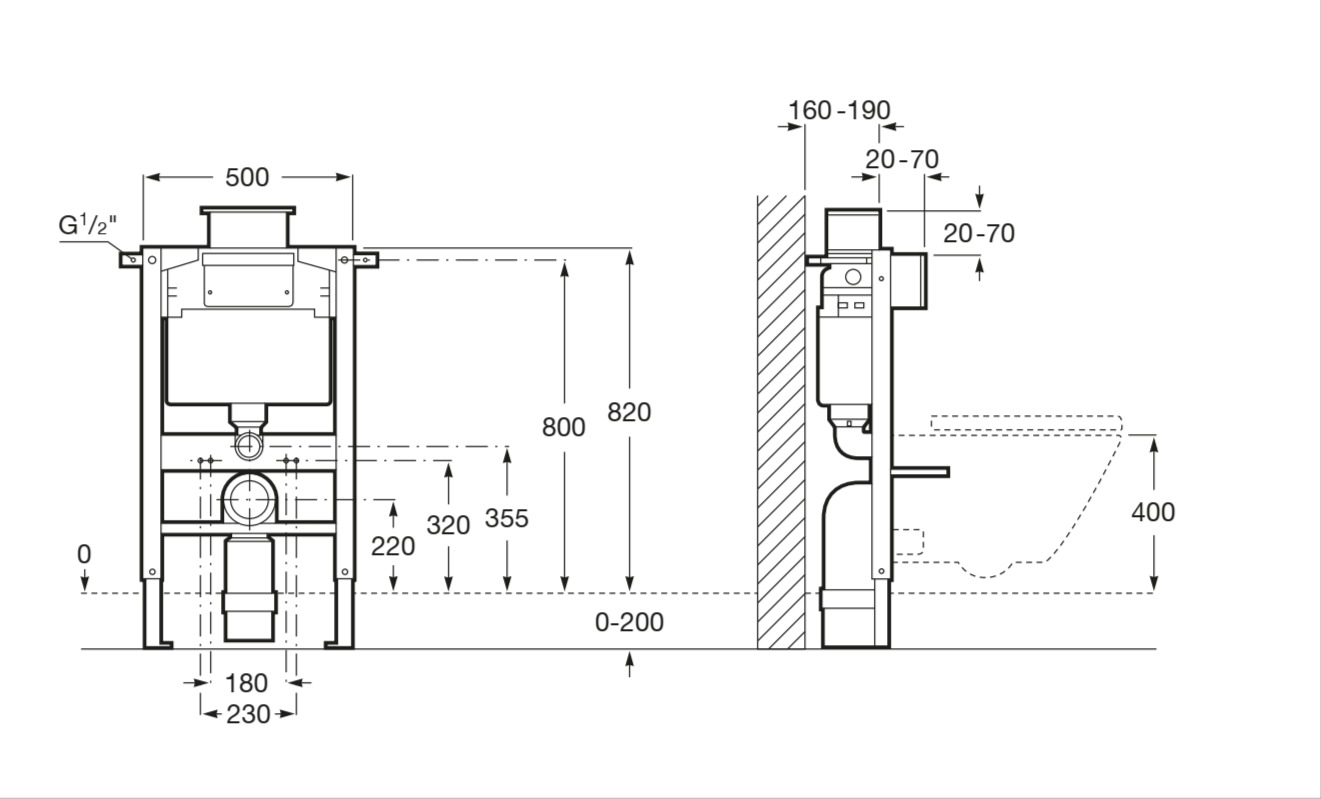

  • Size: 500W x 160D x 820H mm.
  • Adjustable feet: 0 to 200mm.
  • Load weight: 400kg.
  • Dual flush litre setting 1: 6/3.
  • Dual flush litre setting 2: 4.5/3.
  • Water supply connection: 1/2".
  • WRAS approved.
  • CE marking.
  • 5 Year guarantee: Roca guarantee this concealed cistern for 5 years.
  • 10 Year guarantee: Roca guarantee this frame for 10 years.

Roca Duplo L .82m WC Frame With Dual Flush Cistern

SKU: A890121010
€300.00Price
