The Grohe Rapid SL 1.13m 3 In 1 Toilet Frame With Skate Cosmo Flush Plate

Grohes latest 3 In 1 Pack for WC has set new standards of efficiency. Part of the brands Rapid SL range, it is backed by five years warranty against all manufacturing defects. The pack includes a flushing cistern that has been insulated against condensation and can be connected to water supply from left, right or back. A wall plate with dual flush actuation and a self-supporting powder coated steel frame are also part of the set.
Manufacturing code of this product is 38772001
Comes with flushing cistern GD 2
Cistern features: Dual flush 6-3 liter or non-interruptible single flush 6 liter
Water supply from left,right or back
Insulated against condensation
½ inch water supply connection including integrated
Angle valve and push fit flexible hose union
Skate Cosmopolitan wall plate
Wall plate features: Dual flush actuation
Dimension : 156 x 197mm
Wall plate produced from ABS
Vertical and horizontal installation
Complete with GROHE StarLight process
TUV approved bracket
2 WC fixing bolts
Fixing device for ceramic
Distance of fixing bolts is 180/230 mm
Bracket for on the wall installations or studded walls
Powder coated steel frame, self-supporting
Suitable for dry-cladding, completely pre-assembled

Bracket with fixed connections
Suitable for single or series installation
Quick adjustment, lockable
Fixing material
Outlet bend diameter is Ø 90mm
Depth adjustable reducer diameter is Ø 90/100mm
Inlet and outlet connecting set
Adjustment ex factory 6 liter and 3 liter
Pneumatic discharge valve offering 2 modes of operation
Suitable for vertical or horizontal use
Accessories for on the wall installation
3 Inch Uniset Distance Pipe - 42766000 [Optional]
No tools required for the installation of the inspection shaft includes protection during construction phase
GROHE StarLight is a radiant chrome finish, which resists soiling and tarnishing, enduring pristine looks

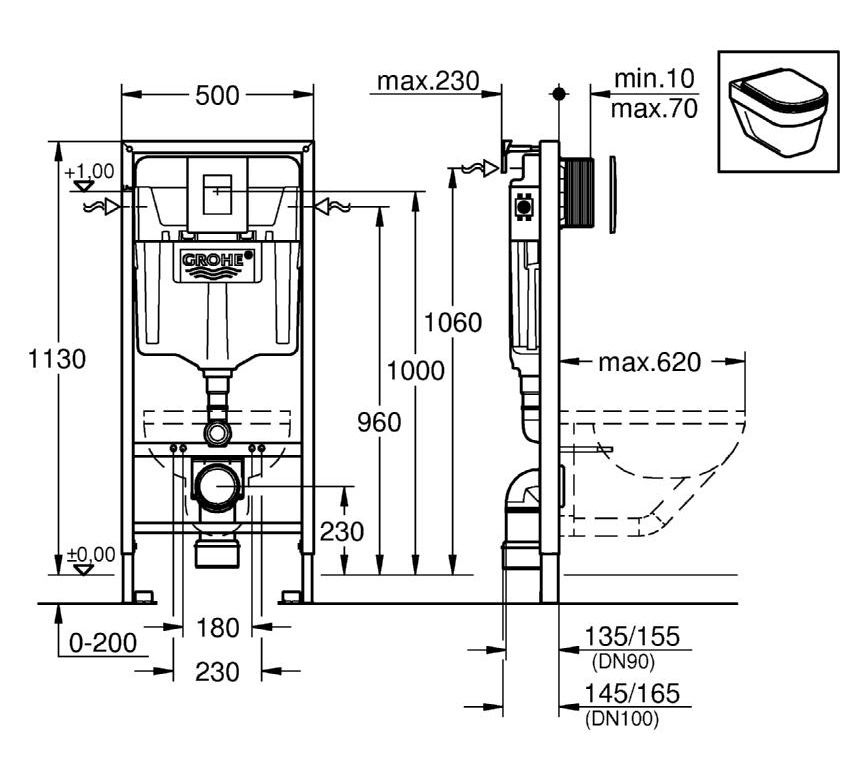

Refer technical image for technical dimensions
5 years warranty from manufacturer
Attractive chrome finished
Installation height is 1.13 m
Supplied with small maintenance access.
