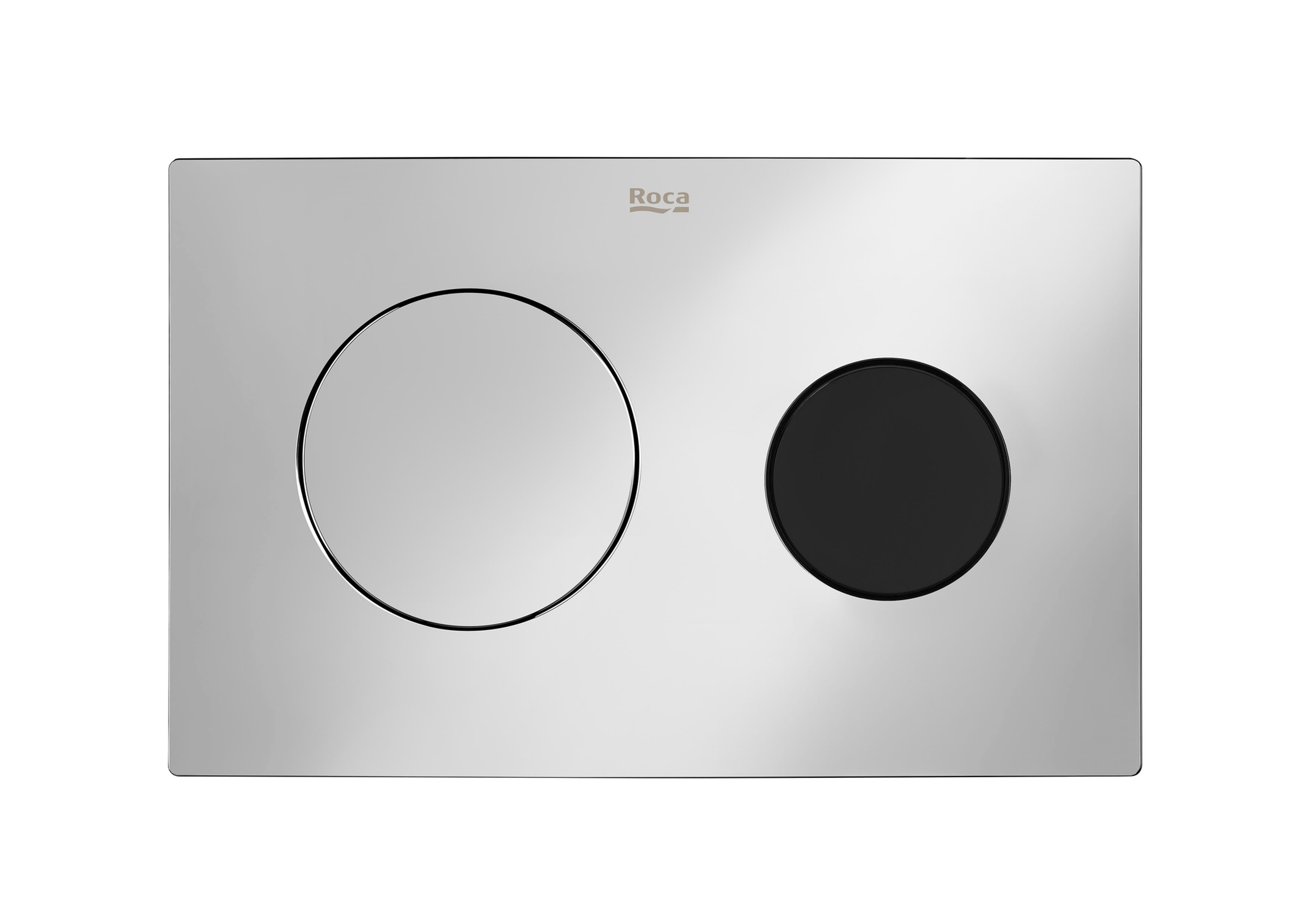

The Roca Duplo One PL10-E combines automatic sensor-operated flushing with a manual full-flush button. Its large circular push button sits beside a dark infrared sensor, giving you touch-free operation without losing the reassurance of a mechanical backup. Choose Chrome or the Pro Stainless Steel anti-vandal version using the existing finish options.
How It Works
In automatic mode, the infrared sensor detects the user and triggers a flush after they move away. The electronic control selects a reduced or full flush according to the time the user has been detected. There is no need to press the plate for the automatic flush.
The large circular button provides a manual full flush when needed, including if the electrical supply is interrupted. Dual flush refers to the two automatic flush volumes; dual operation means you also have the manual full-flush option. This is not a conventional plate with two mechanical push buttons.
The detection range can be adjusted to suit the installation. An optional 24-hour hygiene-flush setting allows a periodic rinse when the toilet is unused. Flush-volume settings must be commissioned for the compatible cistern and WC.
Choose Your Version
Chrome (A890189510) has a chrome-finished plastic faceplate. Pro Stainless Steel (A890189500) uses stainless steel with anti-vandal fixings and additional wall attachment to resist unauthorised removal. The anti-vandal construction applies to the Pro version only.
Key Features
Infrared presence detection with automatic dual-flush operation.
Manual full-flush button that remains usable during a power interruption.
Adjustable detection range and optional 24-hour hygiene flush.
Choice of Chrome or Pro Stainless Steel anti-vandal construction.
For compatible Roca Duplo One concealed-cistern installations.
Before Ordering
This is a mains-powered electronic plate, not a battery-operated model. Plan the electrical connection before the wall is closed and confirm the required power-supply components with Bathworks and your installer; the power-adaptor package should not be assumed from the photographs.
Check the exact concealed-cistern model before ordering. Roca's UK Installation Systems brochure excludes electronic plates from Under Window and Low Height systems. This PL10-E is not for Duplo S / PS installations. The WC, concealed cistern and installation frame are sold separately.
The options on this page are A890189510 and A890189500. Roca Connect versions shown in the quick guide have different references, so app connectivity is not included in the specification of these options. See Brochures & Downloads for the manufacturer's installation and operating instructions.
